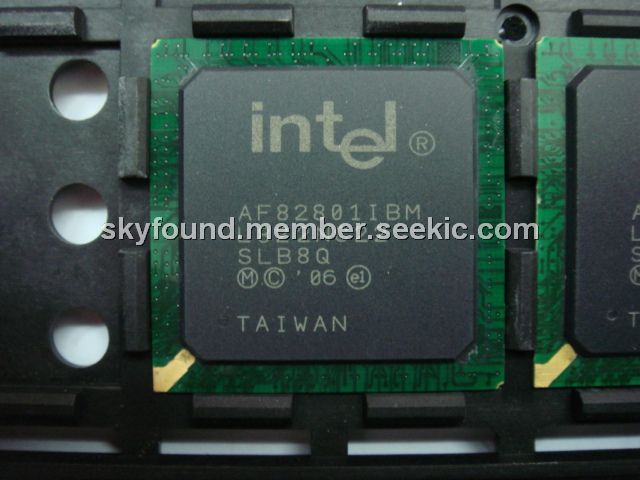

Product Summary
The AF82801IBM is an I/O Controller.
Parametrics
AF82801IBM absolute maximum ratings: (1)Max TDP: 2.5 W; (2)TCASE: 120℃; (3)Package Size: 31mm x 31mm; (4)Integrated IDE: 1 Channel.
Features
AF82801IBM features: (1)Up to 1066 MHz FSB delivers a high-bandwidth connection between processor and chipset; (2)Dual-channel memory controller supports non-ECC, 667/800MHz DDR2or 800/1066 MHz DDR3 SODIMM SDRAM, and provides high-speed memory transactions for greater system performance; (3)Mobile Intel? Graphics Media Accelerator 4500MHD, Intel Clear Video Technology, and graphics core speeds up to 533 MHz improve graphics and 3D rendering performance, and enable high-definition video playback (GM45 and GS45); (4)Support for numerous display/video output options includes VGA, LVDS, DVI, High Definition Multimedia Interface (HDMI) and DisplayPort with integrated High-bandwidth Digital Copy Protection (HDCP) technology. Dual independent display support allows for flexible display configurations; (5)x16 PCI Express graphics or a dual-channel Serial Digital Video Output (SDVO) graphics interface supports high throughput for high-end graphics (GM45 and GS45); (6)Advanced packaging technology and industry-leading electrical design innovations deliver long-term system reliability over a broad spectrum of operating conditions; (7)Direct Media Interface chip interconnect between the GMCH and the ICH can be implemented at x4 or x2 widths, providing up to 1 GB/s in each direction in full duplex; (8)12 USB 2.0 ports may be controlled by up to two high-speed Enhanced Host Controller Interfaces (EHCI) or up to six Universal Host Controller Interfaces. Each EHCI allows data transfers of up to 480 Mb/s; (9)Up to six PCI Express root ports on the ICH are configurable as six single x1 ports or partially ganged together as one x4 port and two x1 ports. Each root port allows transfer rates of up to 2.5 GB/s in each direction; (10)Intel High Definition Audio1 interface delivers premium digital multi-channel sound.

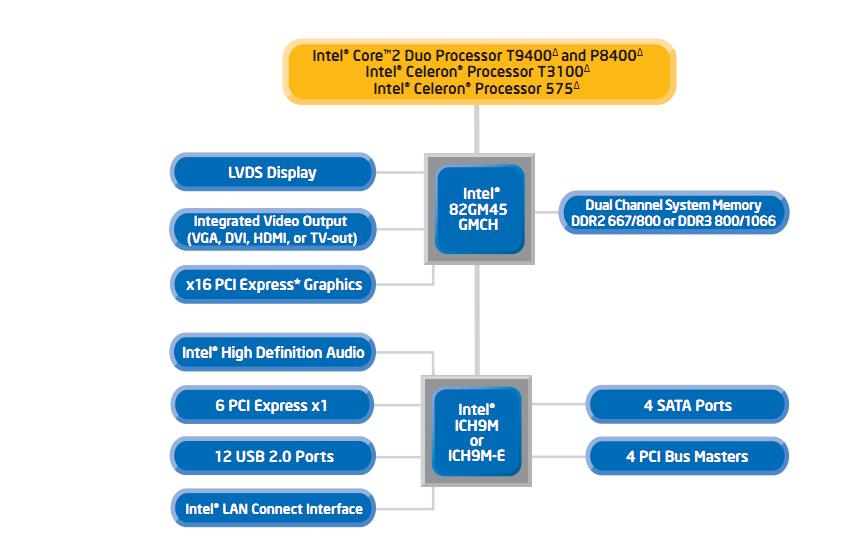

Diagrams
