Product Summary
The HI3-DAC80V-5 is a 12-Bit, Low Cost, Monolithic D/A Converter. Single chip construction along with several design innovations make the HI3-DAC80V-5 the optimum choice for low cost, high reliability applications. Intersil’ unique Dielectric Isolation (Dl) processing reduces internal parasitics resulting in fast switching times and minimum glitch. On board span resistors are provided for good tracking over temperature, and are laser trimmed to high accuracy. The applications of the HI3-DAC80V-5 include High Speed A/D Converters, Precision Instrumentation, CRT Display Generation.
Parametrics
HI3-DAC80V-5 absolute maximum ratings: (1)Power Supply Inputs, +VS: +20V; -VS: -20V; (2)Reference, Input (Pin 16): +VS; Output Drain: 2.5mA; (3)Digital Inputs (Bits 1 to 12): -1V to +VS; (4)Operating Temperature Range: 0℃ to 75℃.
Features
HI3-DAC80V-5 features: (1)DAC 80V/DAC 85V Alternative Source; (2)Monolithic Construction; (3)Fast Settling Time (Typ): 1.5ms; (4)Guaranteed Monotonicity; (5)Wafer Laser Trimmed Linearity, Gain, Offset; (6)Span Resistors On-Chip; (7)On-Board Reference; (8)Supply Operation: ±12V.

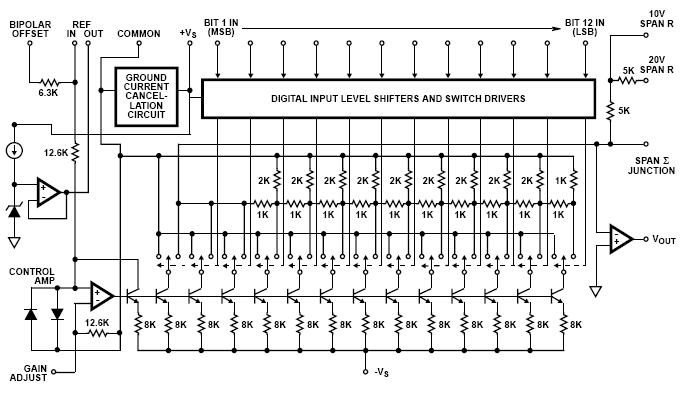

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

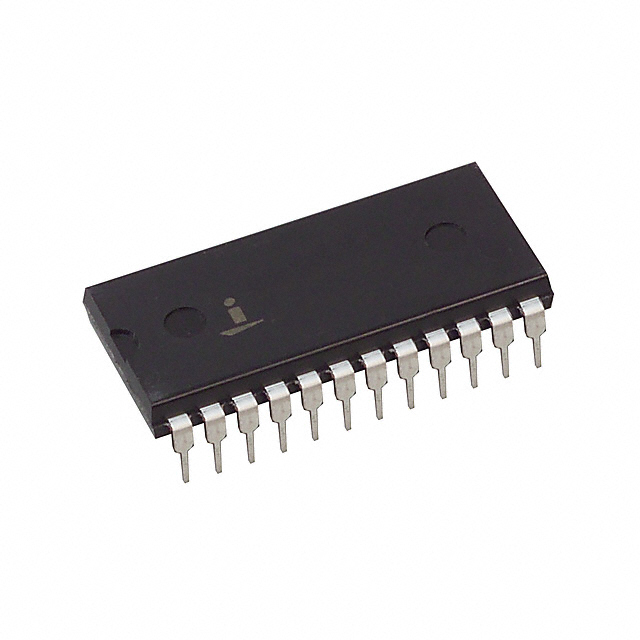

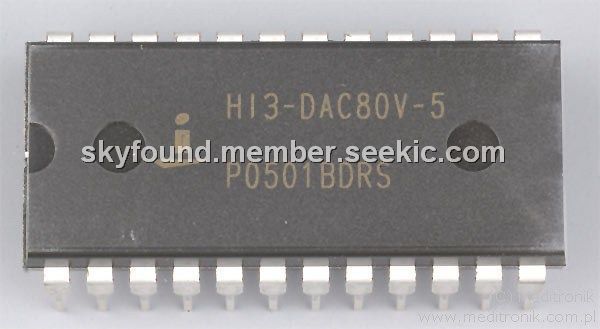

HI3-DAC80V-5 |
CONV D/A 12BIT OUTPUT AMP 24PDIP |
Data Sheet |
Negotiable |
|
||||||||||||
