Product Summary

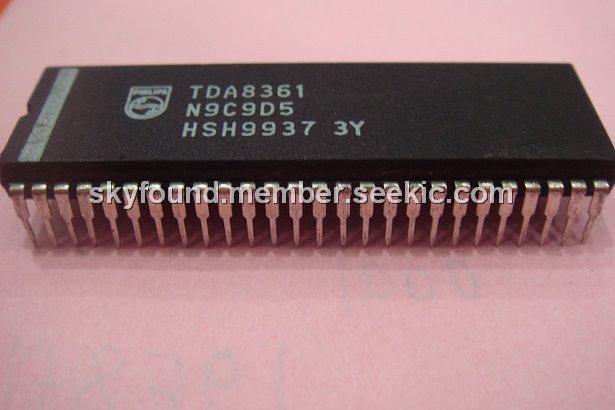

The TDA8361 is an Integrated PAL and PAL/NTSC TV processor. This IC contains an automatic PAL/NTSC decoder. The decoder can be forced to PAL when the hue control pin is connected to the positive supply voltage via a 5kΩ or 10 kΩ resistor (approximately). The decoder cannot be forced to the NTSC standard. The TDA8361 is also possible to see if a colour signal is recognized via the saturation pin.
Parametrics
TDA8361 absolute maximum ratings: (1)supply voltage, VP: 9.0 V; (2)storage temperature, Tstg: -25 to +150℃; (3)operating ambient temperature, Tamb: -25 to +70℃; (4)soldering temperature for 5 s, Tsol: 260℃; (5)maximum junction temperature (operating), Tj: 150℃.
Features
TDA8361 features: (1)Vision IF amplifier with high sensitivity and good differentialgain and phase; (2)Multistandard FM sound demodulator (4.5 MHz to 6.5 MHz); (3)Integrated chrominance trap and bandpass filters (automatically; (4)calibrated); (5)Integrated luminance delay line; (6)RGB control circuit with linear RGB inputs and fast blanking; (7)Horizontal synchronization with two control loops and alignment-free horizontal oscillator without external components; (8)Vertical count-down circuit (50/60 Hz) and vertical preamplifier; (9)Low dissipation (700 mW); (10)Small amount of peripheral components compared with competition ICs; (11)Only one adjustment (vision IF demodulator); (12)The supply voltage for the ICs is 8 V. They are mounted in a shrink DIL envelope with 52 pins and are pin compatible.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA8361 |
Other |
|
Data Sheet |
Negotiable |
|
||||
