Product Summary

The AT17F040A is an FPGA Configuration Flash Memory. The AT17F040A provides an easy-to-use, cost-effective configuration memory for Field Programmable Gate Arrays. The device is packaged in the 8-lead LAP, 20-lead PLCC and 32-lead TQFP. The AT17F040A uses a simple serial-access procedure to configure one or more FPGA devices.

Parametrics

AT17F040A absolute maximum ratings: (1)Operating Temperature: -40℃ to +85℃; (2)Storage Temperature: -65℃ to +150℃; (3)Voltage on Any Pin with Respect to Ground: -0.5V to VCC +0.5V; (4)Supply Voltage (VCC): -0.5V to +4.0V; (5)Maximum Soldering Temp. (10 sec. @ 1/16 in.): 260℃; (6)ESD (RZAP = 1.5K, CZAP = 100 pF): 2000V.

Features

AT17F040A features: (1)Programmable 4,194,304 x 1 and 8,388,608 x 1-bit Serial Memories Designed to Store Configuration Programs for Field Programmable Gate Arrays (FPGAs); (2)3.3V Output Capability; (3)5V Tolerant I/O Pins; (4)Program Support using the Atmel ATDH2200E System or Industry Third Party Programmers; (5)In-System Programmable (ISP) via 2-wire Bus; (6)Simple Interface to SRAM FPGAs; (7)Compatible with Atmel AT40K and AT94K Devices, Altera FLEX Excalibur Stratix Cyclone and APEX Devices; (8)Cascadable Read-back to Support Additional Configurations or Higher-density Arrays; (9)Low-power CMOS FLASH Process; (10)Available in 8-lead LAP, 20-lead PLCC and 32-lead TQFP Packages; (11)Emulation of Atmel AT24CXXX Serial EEPROMs; (12)Low-power Standby Mode; (13)Single Device Capable of Holding 4 Bit Stream Files Allowing Simple System Reconfiguration; (14)Fast Serial Download Speeds up to 33 MHz; (15)Endurance: 5,000 Write Cycles Typical; (16)Green (Lead/Halide-free/ROHS compliant) Packages.

Diagrams

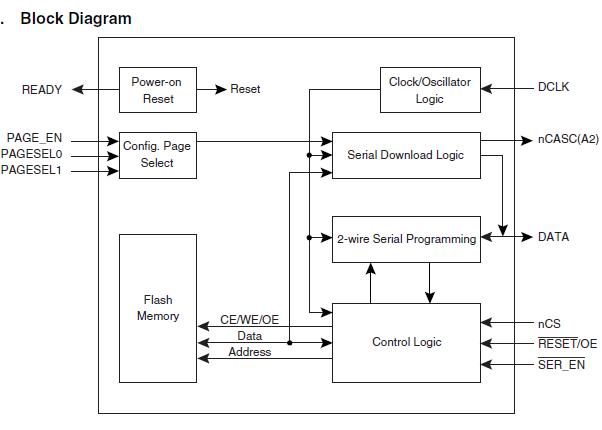

AT17F040A block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
AT17F040A-30CU
AT17F040A-30CU

Atmel

Flash SER CONFIG FLASH-4M ALTERA PINOUT-30MHZ

Data Sheet

0-154: $3.90
154-250: $3.89
AT17F040A-30JC
AT17F040A-30JC

Atmel

Flash Serial Flash

Data Sheet

Negotiable
AT17F040A-30JU
AT17F040A-30JU

Atmel

Flash SER CONFIG FLASH-4M ALTERA PINOUT-30MHZ

Data Sheet

0-1: $5.20
1-10: $5.04
10-25: $4.84
25-100: $4.49
