Product Summary

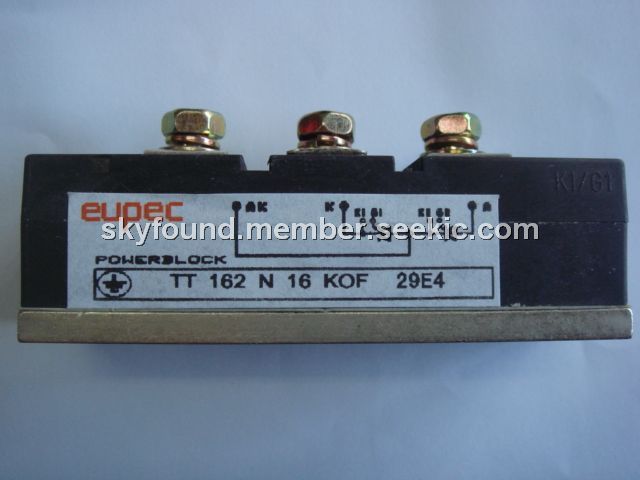

The TT162N16KOF is a Phase Control Thyristor Module.
Parametrics
TT162N16KOF absolute maximum ratings: (1)repetitive peak forward off-state and reverse voltages: 1600V; (2)non-repetitive peak forward off-state voltage: 1600V; (3)non-repetitive peak reverse voltage: 1700V; (4)maximum RMS on-state current: 260A; (5)average on-state current: 162A; (6)surge current: 4400A; (7)I2t-value: 9700A2s; (8)critical rate of rise of on-state current: 150A/μs; (9)critical rate of rise of off-state voltage: 1000V/μs.
Features
TT162N16KOF features: (1)on-state voltage: max.1.41V; (2)threshold voltage: 0.85V; (3)slope resistance: 0.95mΩ; (4)gate trigger current: max.150mA; (5)gate trigger voltage: 2V; (6)gate non-trigger current: max.5mA; (7)gate non-trigger voltage: max.0.25V; (8)holding current: max.200mA; (9)latching current: max.800mA; (10)forward off-state and reverse current: max.30mA; (11)gate controlled delay time: max.3μs.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TT162N16KOF |
Infineon Technologies |
Discrete Semiconductor Modules 1600V 260A DUAL |
Data Sheet |
|
|
||||||||
|
TT162N16KOF-A |
Infineon Technologies |
SCRs PCT 1600V 162A |
Data Sheet |
|
|
||||||||
|
TT162N16KOF-K |
Infineon Technologies |
SCRs PCT 1600V 162A |
Data Sheet |
|
|
||||||||
