Product Summary

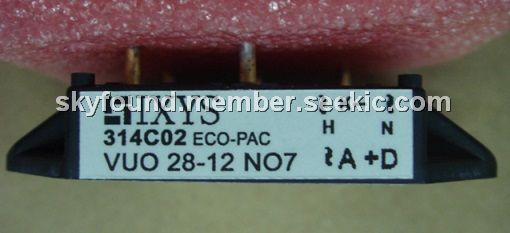

The VUO28-12NO7 is a Three Phase Bridge Rectifier. The applications of the VUO28-12NO7 include Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.
Parametrics
VUO28-12NO7 absolute maximum ratings: (1)TC = 100℃, module, IdAV: 28 A; (2)TVJ = 45℃; t = 10 ms (50 Hz), sine, IFSM: 100 A; VR = 0, t = 8.3 ms (60 Hz), sine, IFSM: 106 A; TVJ = TVJM, t = 10 ms (50 Hz), sine, IFSM: 85 A; VR = 0, t = 8.3 ms (60 Hz), sine, IFSM: 90 A; (3)TVJ = 45℃, t = 10 ms (50 Hz), sine, I2t: 50 A2s; VR = 0, t = 8.3 ms (60 Hz), sine, I2t: 47 A2s; TVJ = TVJM t = 10 ms (50 Hz), sine, I2t: 36 A2s; VR = 0, t = 8.3 ms (60 Hz), sine, I2t: 33 A2s; (4)TVJ: -40 to +150℃; (5)TVJM: 150℃; (6)Tstg: -40 to +125℃; (7)50/60 Hz, RMS, t = 1 min, VISOL: 2500 V; (8)IISOL ≤ 1 mA, t = 1 s, VISOL: 3000 V.
Features
VUO28-12NO7 features: (1)Package with DCB ceramic base plate; (2)Isolation voltage 3000 V; (3)Planar passivated chips; (4)Low forward voltage drop; (5)Leads suitable for PC board soldering.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 VUO28-12NO7 |
Ixys |
Bridge Rectifiers 28 Amps 1200V |
Data Sheet |
Negotiable |
|
||||
