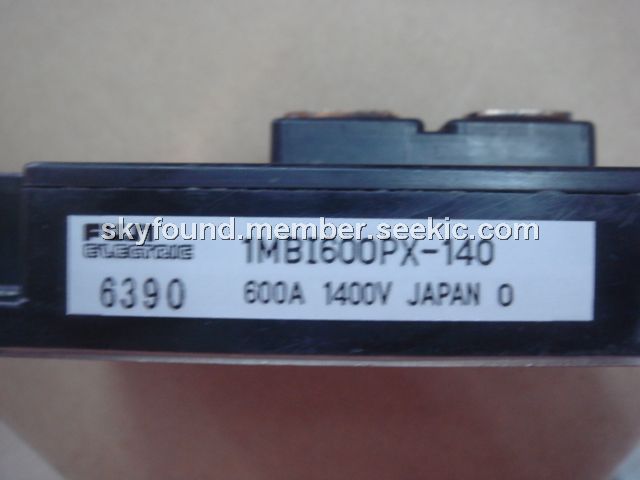

Product Summary

The 1MBI600PX-140 is an IGBT module. The 1MBI600PX-140 is used in High Power Switching, A.C. Motor Controls, D.C. Motor Controls, Uninterruptible Power Supply.

Parametrics

1MBI600PX-140 absolute maximum ratings: (1)collector-emitter voltage, VCES: 1400V; (2)gate-emitter voltage, VGES: ±20V; (3)collector current, continuous, IC: 800A at Tc=25℃; 600A at Tc=80℃; 1ms, IC pulse: 1600A at Tc=25℃; 1200A at Tc=80℃; -IC: 600A; 1ms, -IC pulse: 1200A; (4)max power dissipation, PC: 4100W; (5)operating temperature, Tj: 150℃; (6)storage temperature, Tstg: -40 to 125℃; (7)isolation voltage, Vis: AC 2500V.

Features

1MBI600PX-140 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3)Less Total Power Dissipation; (4)Improved FWD Characteristic; (5)Minimized Internal Stray Inductance.

Diagrams

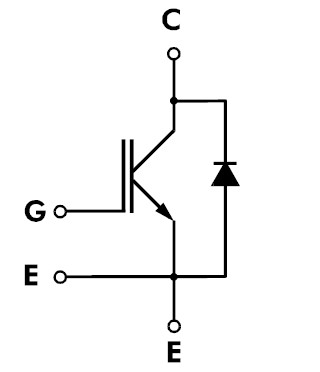

1MBI600PX-140 circuit diagram
