Product Summary

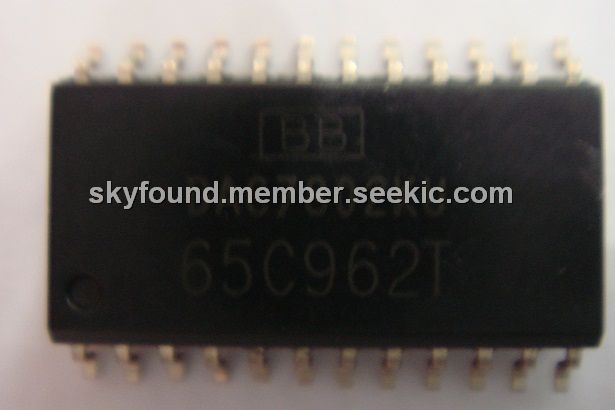

The DAC7802KU is a dual 12-bit CMOS multiplying Digital-to-Analog Converter (DAC). It has a single-buffered 12-bit data word interface. Parallel data is loaded (edge triggered) into the single DAC register for each DAC. The DAC7802KU is packaged in a 24-pin 0.3’ wide plastic DIP. The applications of the DAC7802KU are process control outputs, ate pin electronics level setting, programmable filters, programmable gain circuits, auto-calibration circuits.
Parametrics
DAC7802KU absolute maximum ratings: (1)VDD to AGND: 0V to +7V; (2)VDD to DGND: 0V to +7V; (3)AGND to DGND: -0.3, VDD; (4)Digital Input to DGND: -0.3 to VDD +0.3; (5)VREF A, VREF B to AGND: ±16V; (6)VREF A, VREF B to DGND: ±16V; (7)IOUT A, IOUT B to AGND: -0.3, VDD; (8)Storage Temperature Range: -55℃ to +125℃; (9)Operating Temperature Range: -40℃ to +85℃; (10)Lead Temperature (soldering, 10s): +300℃; (11)Junction Temperature: +175℃.
Features
DAC7802KU features: (1)two DACs in a 0.3’wide package; (2)single +5V supply; (3)high-speed digital interface: 12-Bit parallel; (4)monotonic over temperature; (5)low crosstalk: –94dB min; (6)fully specified over -40℃ to +85℃.

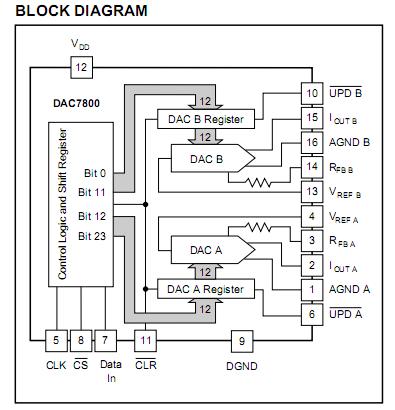

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 DAC7802KU |
Texas Instruments |
DAC (D/A Converters) Dual Monolithic CMOS 12-Bit Multiplying |
Data Sheet |
|
|
||||||||||||
|
DAC7802KU/1K |
Texas Instruments |
DAC (D/A Converters) Dual Monolithic CMOS 12-Bit Multiplying |
Data Sheet |
|
|
||||||||||||
 |
DAC7802KUG4 |
Texas Instruments |
DAC (D/A Converters) Dual Monolithic CMOS 12-Bit Multiplying |
Data Sheet |
|
|
||||||||||||
|
DAC7802KU/1KG4 |
Texas Instruments |
DAC (D/A Converters) Dual Monolithic CMOS 12-Bit Multiplying |
Data Sheet |
|
|
||||||||||||
