Product Summary

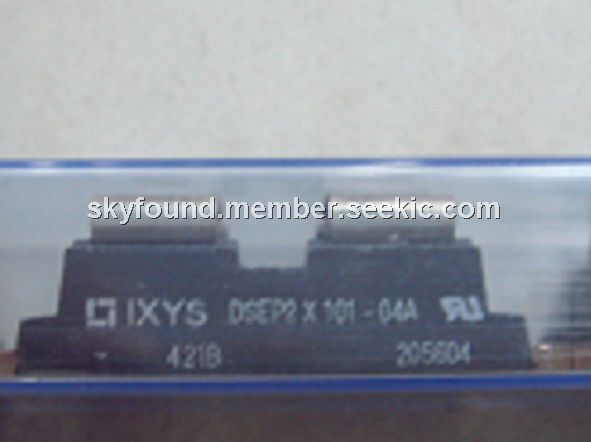

The DSEP2X101-04A is a HiPerFRED Epitaxial Diode with soft recovery. The applications of the DSEP2X101-04A include Antiparallel diode for high frequency switching devices, Antisaturation diode, Snubber diode, Free wheeling diode in converters and motor control circuits, Rectifiers in switch mode power supplies (SMPS), Inductive heating, Uninterruptible power supplies (UPS), Ultrasonic cleaners and welders.

Parametrics

DSEP2X101-04A absolute maximum ratings: (1)IFRMS: 100 A; (2)IFAVM: 100 A; (3)IFSM: 1000 A; (4)EAS: 2 mJ; (5)IAR: 0.4 A; (6)TVJ: -40 to +150℃; (7)TVJM: 150℃; (8)Tstg: -40 to +150℃; (9)Ptot: 200 W; (10)VISOL: 2500 V.

Features

DSEP2X101-04A features: (1)International standard package miniBLOC; (2)Isolation voltage 2500 V; (3)UL registered E 72873; (4)2 independent FRED in 1 package; (5)Planar passivated chips; (6)Very short recovery time; (7)Extremely low switching losses; (8)Low I RM-values; (9)Soft recovery behaviour.

Diagrams

DSEP2X101-04A circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
DSEP2x101-04A
DSEP2x101-04A

Ixys

Rectifiers 200 Amps 400V

Data Sheet

Negotiable
