Product Summary

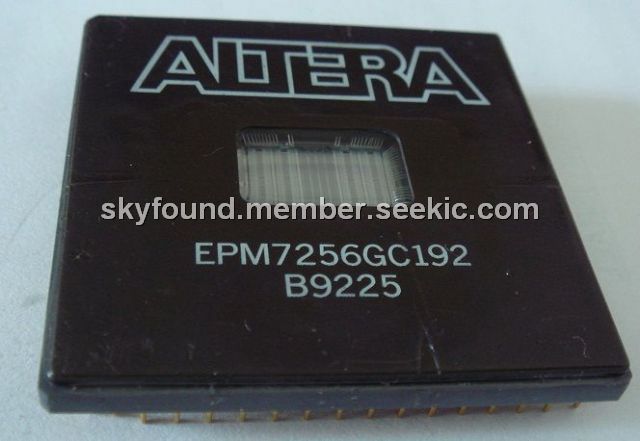

The EPM7256GC192 is a high-density, highperformance device based on Altera’s second-generation MAX architecture. Fabricated with advanced CMOS technology, the EEPROMbased device operates with a 3.3-V supply voltage and provides 600 to 10,000 usable gates, ISP, pin-to-pin delays as fast as 4.5 ns, and counter speeds of up to 227.3 MHz. The EPM7256GC192 in the -4, -5, -6, -7, and some -10 speed grades are compatible with the timing requirements for 33 MHz operation of the PCI Special Interest Group (PCI SIG) PCI Local Bus Specification, Revision 2.2.
Parametrics
EPM7256GC192 absolute maximum ratings: (1)Supply voltage With respect to ground, VCC: -0.5 to 4.6 V; (2)DC input voltage, VI: -2.0 to 5.75 V; (3)DC output current, per pin, IOUT: -25 to 25 mA; (4)Storage temperature No bias, TSTG: -65 to 150℃; (5)Ambient temperature Under bias, TA: -65 to 135℃; (6)Junction temperature BGA, FineLine BGA, PQFP, and TQFP packages, under bias, TJ: 135℃.
Features
EPM7256GC192 features: (1)High-performance 3.3-V EEPROM-based programmable logic devices (PLDs) built on second-generation Multiple Array MatriX (MAXR) architecture; (2)3.3-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability; (3)Built-in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1; (4)Supports JEDEC Jam Standard Test and Programming Language (STAPL) JESD-71; (5)Enhanced ISP features; (6)Pin-compatible with the popular 5.0-V MAX 7000S devices; (7)High-density PLDs ranging from 600 to 10,000 usable gates; (8)Extended temperature range.

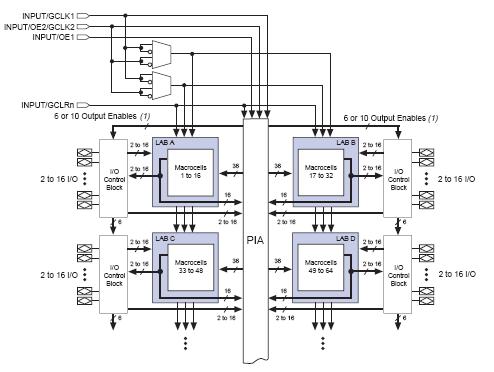

Diagrams
 |
