Product Summary

The G6S-2F-5VDC is a Suface Mount DPDT Relay.

Parametrics

G6S-2F-5VDC absolute maximum ratings: (1)Rated load: 0.5 A at 125 VAC; 2 A at 30 VDC; (2)Contact material: Ag (Au clad); (3)Max. carry current: 2 A; (4)Max. operating voltage: 250 VAC, 220 VDC; (5)Max. operating current: 2 A; (6)Max. switching capacity: 62.5 VA, 60 W; (7)Min. permissible load: 10 μA, 10 mVDC.

Features

G6S-2F-5VDC features: (1)High dielectric withstand voltage of 2,000 VAC between coil and contacts (standard type); 1,500 VAC between contacts of different polarity; (2)Meets FCC Part 68 and Telcordia 2.5 kV surge withstand; (3)European version certified for EN60950/EN41003 Supplementary Insulation at 250 V at Pollution Degree 2; (4)Low power consumption of 140 mW (Non-latching); (5)Available in through-hole and SMT terminals; (6)Tape and reel or tube packaging; (7)RoHS Compliant.

Diagrams

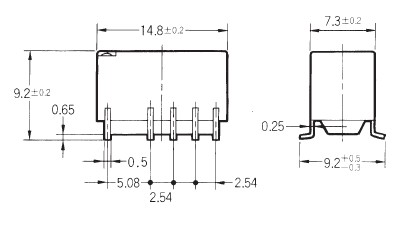

G6S-2F-5VDC block diagram

G6S-2
G6S-2
Other

Data Sheet
Negotiable
G6S-2 DC5
G6S-2 DC5
Omron Electronics
Low Signal Relays - PCB ThruHole NonLatch 2A DPDT 5VDC 140mW
Data Sheet
0-1: $1.65
1-25: $1.48
25-50: $1.31
50-100: $1.18
G6S-2 DC6 BY OMR
G6S-2 DC6 BY OMR
Omron Electronics
Low Signal Relays - PCB Low Signal Relay
Data Sheet
0-1: $1.73
1-25: $1.64
25-50: $1.51
50-100: $1.37
G6S-2 DC9
G6S-2 DC9
Omron Electronics
Low Signal Relays - PCB ThruHole NonLatch 2A DPDT 9VDC 140mW
Data Sheet
0-1: $2.34
1-25: $2.11
25-50: $1.87
50-100: $1.68
G6S-2-DC12
G6S-2-DC12
Omron Electronics
Low Signal Relays - PCB ThruHole NonLatch 2A DPDT 12VDC 200mW
Data Sheet
0-1: $1.88
1-25: $1.65
25-50: $1.57
50-100: $1.48
G6S-2-DC4.5
G6S-2-DC4.5
Omron Electronics
Low Signal Relays - PCB ThruHole NonLatch 2A DPDT 4.5DC 140mW
Data Sheet
0-1: $2.34
1-25: $2.11
25-50: $1.87
50-100: $1.68
