Product Summary

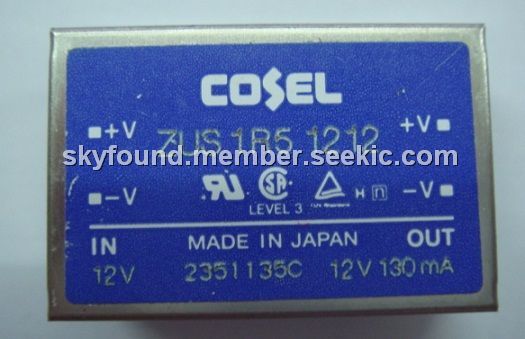

The ZUS1R51212 is an Isolated PC Board Mount DC/DC Converter.
Parametrics
ZUS1R51212 absolute maximum ratings: (1)INPUT-OUTPUT: AC500V 1minute, Cutoff current = 10mA, DC500V 50MW min (20t15C); (2)INPUT-CASE: AC500V 1minute, Cutoff current = 10mA, DC500V 50MW min (20t15C); (3)OUTPUT-CASE: AC500V 1minute, Cutoff current = 10mA, DC500V 50MW min (20t15C); (4)Operating temperature: -20 to +71℃; (5)Storage temperature: -40 to +85℃; (6)VIBRATION: 10 - 55Hz.
Features
ZUS1R51212 features: (1)OVERCURRENT PROTECTION: Works over 105% of rating and recovers automatically; (2)ISOLATION; (3)INPUT-OUTPUT: AC500V 1minute, Cutoff current = 10mA, DC500V 50MW min (20t15C); (4)INPUT-CASE: AC500V 1minute, Cutoff current = 10mA, DC500V 50MW min (20t15C); (5)OUTPUT-CASE: AC500V 1minute, Cutoff current = 10mA, DC500V 50MW min (20t15C).

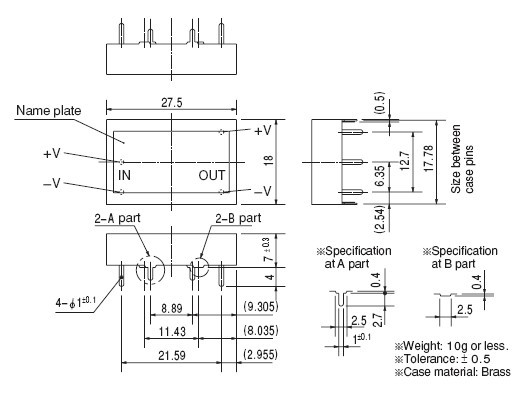

Diagrams
