Product Summary
The Intersil IS82C55AZ is a high performance CMOS version of the industry standard 8255A and is manufactured using a self-aligned silicon gate CMOS process (Scaled SAJI IV). It is a general purpose programmable I/O device which may be used with many different microprocessors. There are 24 I/O pins which may be individually programmed in 2 groups of 12 and used in 3 major modes of operation. The high performance and industry standard configuration of the IS82C55AZ make it compatible with the 80C86, 80C88 and other microprocessors.
Parametrics
IS82C55AZ Absolute maximum ratings: (1)Supply Voltage: +8.0V; (2)Input, Output or I/O Voltage: GND-0.5V to VCC+0.5V; (3)ESD Classification: Class 1.
Features
IS82C55AZ Features: (1)Pb-Free Plus Anneal Available (RoHS Compliant)(See Ordering Info); (2)Pin Compatible with NMOS 8255A; (3)24 Programmable I/O Pins; (4)Fully TTL Compatible; (5)High Speed, No “Wait State” Operation with 5MHz and 8MHz 80C86 and 80C88; (6)Direct Bit Set/Reset Capability; (7)Enhanced Control Word Read Capability; (8)L7 Process; (9)2.5mA Drive Capability on All I/O Ports; (10)Low Standby Power (ICCSB): 10μA.

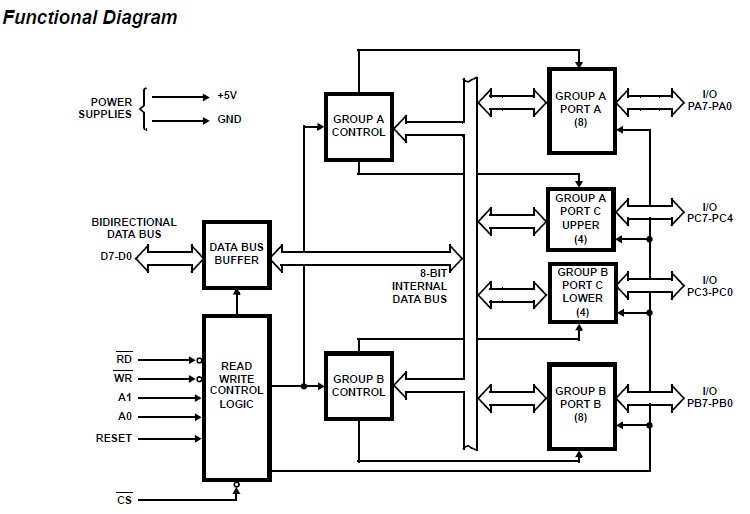

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IS82C55AZ |
Intersil |
Peripheral Drivers & Components (PCIs) PERI PRG-I/O 5V 8MHZ 44PLCC IND |
Data Sheet |
|
|
||||||||
|
IS82C55AZ96 |
Intersil |
Peripheral Drivers & Components (PCIs) PERI PRG-I/O 5V 8MHZ 44PLCC INDEL |
Data Sheet |
|
|
||||||||
