Product Summary

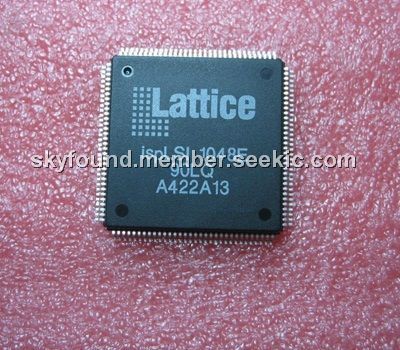

The ISPLSI1048E-90LQ is a High Density Programmable Logic Device containing 288 Registers, 96 Universal I/O pins, 12 Dedicated Input pins, four Dedicated Clock Input pins, two dedicated Global OE input pins, and a Global Routing Pool (GRP). The GRP provides complete interconnectivity between all of these elements. The ISPLSI1048E-90LQ offers 5V non-volatile in-system programmability of the logic, as well as the interconnect to provide truly reconfigurable systems. A functional superset of the ISPLSI1048E-90LQ architecture, the ISPLSI1048E-90LQ adds two new global output enable pins and two additional dedicated inputs.
Parametrics
ISPLSI1048E-90LQ absolute maximum ratings: (1)Supply Voltage Vcc: －0.5 to +7.0V; (2)Input Voltage Applied: －2.5 to VCC +1.0V; (3)Off－State Output Voltage Applied : －2.5 to VCC +1.0V; (4)Storage Temperature : －65 to 150℃; (5)Case Temp. with Power Applied : －55 to 125℃; (6)Max. Junction Temp. (TJ)with Power Applied : 150℃.
Features
ISPLSI1048E-90LQ features: (1)high density programmable logic; (2)high performance e2cmos technology; (3)in system programmable; (4)offers the ease of use and fast system speed of plds with the density and flexibility of field programmable gate arrays.
Diagrams
 |
