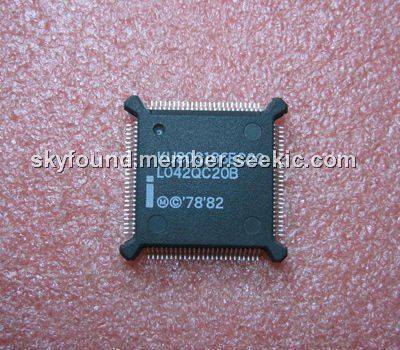

KU80C186EC20

16-bit, high-integration embedded processor, QFP, -0.5V to 6.5V, On-Chip Oscillator, Ten Programmable Chip

Rated 5 Rating 5 | reviews | Write a review

Price:: US $6.00~20.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $6.00~20.00

PartNumber:: KU80C186EC20

Brand:: Intel Corporation - Intel | Pack: QFP | D/C: 07+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Monica's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2011-11-04

From Other Seller

Part Number:KU80C186EC20
US $6.00 - 20.00
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The KU80C186EC20 is a 16-bit high-integration embedded processor. The KU80C186EC20 is one of the highest integration members of the 186 Integrated Processor Family. Two serial ports are provided for services such as interprocessor communication, diagnostics and modem interfacing. Four DMA channels of the KU80C186EC20 allow for high speed data movement as well as support of the onboard serial ports. A flexible chip select unit simplifies memory and peripheral interfacing. The three general purpose timer/counters can be used for a variety of time measurement and waveform generation tasks. A watchdog timer is provided to insure system integrity even in the most hostile of environments. Two 8259A compatible interrupt controllers handle internal interrupts, and, up to 57 external interrupt requests. A DRAM refresh unit and 24 multiplexed I/O ports round out the feature set of the KU80C186EC20.

Parametrics

KU80C186EC20 absolute maximum ratings: (1)Storage Temperature: -65 to 150℃; (2)Case Temperature Under Bias: -64to 100℃; (3)Supply Voltage with Respect to VSS: -0.5V to 6.5V; (4)Voltage on Other Pins with Respect to VSS: -0.5V to VCC+0.5V.

Features

KU80C186EC20 features: (1)Integrated Feature Set; (2)Low-Power, Static, Enhanced 8086 CPU Core; (3)Two Independent DMA Supported UARTs, each with an integral Baud Rate Generator; (4)Four Independent DMA Channels; (5)22 Multiplexed I/O Port Pins; (6)Two 8259A Compatible programmable Interrupt Controllers; (7)Three Programmable 16-Bit Timer/Counters; (8)32-Bit Watchdog Timer; (9)Ten Programmable Chip Selects with Integral Wait-State Generator; (10)Memory Refresh Control Unit; (11)Power Management Unit; (12)On-Chip Oscillator; (13)System Level Testing Support (ONCE Mode); (14)Direct Addressing Capability to 1 Mbyte Memory and 64 Kbyte I/O.
