Product Summary

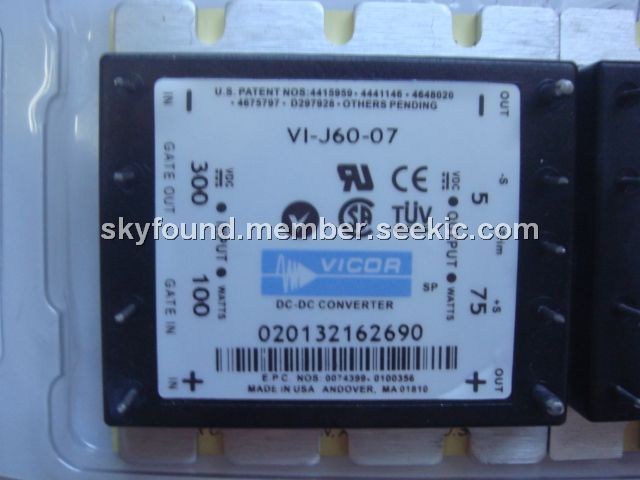

The VI-J60-07 is a DC-DC converter. The VI-J60-07’s “junior” size complement to the higher power VI-200 family offers up to 100W of isolated and regulated power in a board mounted package. At one-half the size and twice the power density of previous 100W modules, and with a maximum operating temperature rating of 100℃, the MiniMod opens new horizons for board-mounted
(distributed) power architectures.

Parametrics

VI-J60-07 absolute maximum ratings: (1)Gate out impedance: 50Ohms; (2)Gate in impedance: 103Ohms; (3)Gate in high threshold: 6 Volts; (4)Gate in low threshold: 0.65Volts; (5)Gate in low current: 6 mA; (6)Input to output: 3,000 VRMS; (7)Output to baseplate: 500 VRMS; (8)Input to baseplate: 1,500 VRMS; (9)Baseplate to sink: 0.4℃/Watt.

Features

VI-J60-07 features: (1)Up to 50W/Cubic Inch; (2)UL, CSA, TüV, VDE, BABT; (3)CE Marked; (4)Up to 90% Efficiency; (5)Size: 2.28" x 2.4" x 0.5" (57,9 x 61,0 x 12,7); (6)Remote Sense and Current Limit; (7)Logic Disable; (8)Wide Range Output Adjust; (9)ZCS Power Architecture; (10)Low Noise FM Control.

Diagrams

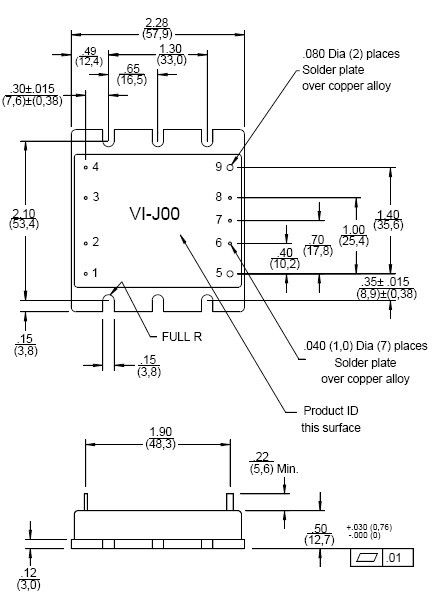

VI-J60-07 block diagram

VI-J00
VI-J00

Other


Data Sheet

Negotiable
VI-J00-CY
VI-J00-CY


CONVERTER MOD DC/DC 5V 50W

Data Sheet
