Product Summary

The LMB162ABC is a LCD Module.

 Shipping
1.We will ship the items within 3 working days after received the payment.

Parametrics

LMB162ABC absolute maximum ratings:(1)Supply voltage, VDD: 0 to 6.0V;(2)Input voltage, Vin: 0 to VDD V;(3)Operating temperature, Top: -20 to +70℃;(4)Storage temperature, Tst: -30 to +80℃.







Features

LMB162ABC features:(1)LCD display mode: STN, positive, transflective;(2)Display color: display data="1": deep bule;(3)Viewing angle: 6H;(4)Driving method: 1/16 duty, 1/5 bias;(5)Back light: yellow-green LED backlight.



Diagrams

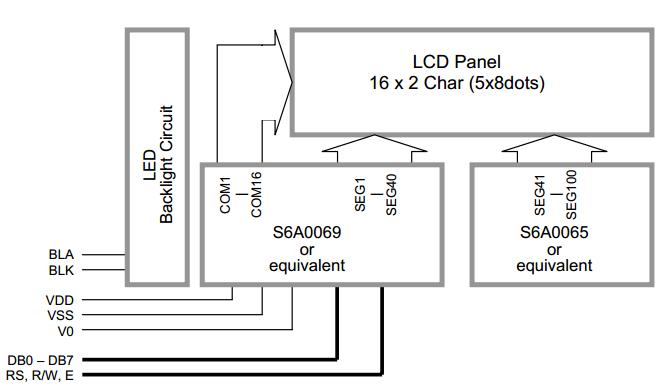

LMB162ABC block diagram
