Product Summary

The MAX4562CEE serial-interface controlled switch is ideal for multimedia applications. The MAX4562CEE features 30.5 max on-resistance (RON), 5.5 RON match, and 5.5 RON flatness. Audio off-isolation and crosstalk at 20kHz is -85dB, and video off-isolation and crosstalk at 10MHz is -55dB. The MAX4562CEE features “clickless” mode operation for audio applications.

Parametrics

MAX4562CEE absolute maximum ratings: (1)V+ to GND: -0.3V to +6V; (2)NO_ _, COM_, DOUT to GND: -0.3V to (V+ + 0.3V); (3)SCL, SDA, CS, SCLK, DIN, A0, A1 to GND: -0.3V to +6V; (4)Continuous Current into Any Terminal: ±20mA; (5)Peak Current (NO_ _, COM_ pulsed at 1ms, 10% duty cycle max): ±50mA; (6)Continuous Power Dissipation (TA = +70℃); (7)16-Pin QSOP (derate 8.3mW/℃ above +70℃): 667mW; (8)Operating Temperature Ranges: 0℃ to +70℃; (9)Storage Temperature Range: -65℃ to +150℃; (10)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX4562CEE features: (1)Selectable Soft-Switching Mode for “Clickless” Audio Operation; (2)30.5 max On-Resistance; (3)Audio Performance; (4)Video Performance; (5)T-Switch Configurable for Improved Off-Isolation; (6)Serial Interface; (7)Single-Supply Operation from +2.7V to +5.5V.

Diagrams

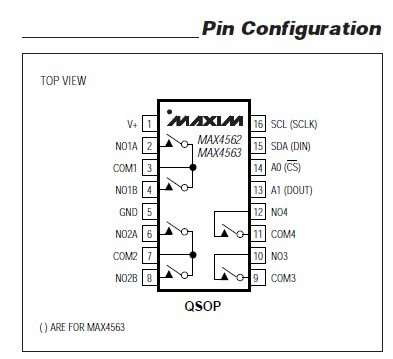

MAX4562CEE Pin Configuration

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
MAX4562CEE
MAX4562CEE

Maxim Integrated Products

Video Switch ICs

Data Sheet

Negotiable
MAX4562CEE+
MAX4562CEE+

Maxim Integrated Products

Video Switch ICs Clickless A/V Switch

Data Sheet

0-1: $3.50
1-25: $2.33
25-50: $1.70
50-100: $1.69
MAX4562CEE-T
MAX4562CEE-T

Maxim Integrated Products

Video Switch ICs

Data Sheet

Negotiable
MAX4562CEE+T
MAX4562CEE+T

Maxim Integrated Products

Video Switch ICs Clickless A/V Switch

Data Sheet

0-2080: $1.46
2080-2500: $1.46
