Product Summary

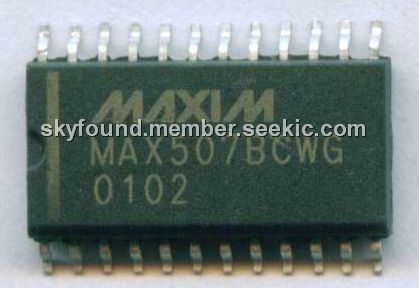

The MAX507BCWG is a complete 12-bit, voltage-output digital-to-analog converter. It is specified and tested for both dual and single +12V to dual ±15V. The applications of the MAX507BCWG include digital offset and gain adjustment, industrial controls, automatic test equipment and automated calibration.
Parametrics
MAX507BCWG absolute maximum ratings: (1)VDD to AGND: -0.3V to +17V; (2)VDD to DGND: -0.3V to +17V; (3)VDD to VSS: -0.3V to +34V; (4)continuous power dissipation: 450mW; (5)operating temperature range: 0 to 70℃; (6)storage temperature range: -65 to 150℃; (7)lead temperature: 300℃.
Features
MAX507BCWG features: (1)12-bit voltage output; (2)internal voltage referance; (3)single +12v to quad-15v supply operation; (4)20-and 2-pin dip and wide so package.

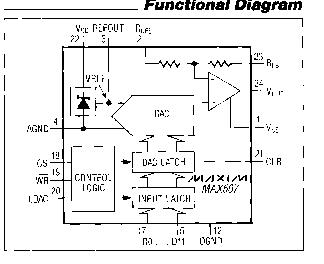

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX507BCWG |
Maxim Integrated Products |
DAC (D/A Converters) |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX507BCWG+ |
Maxim Integrated Products |
DAC (D/A Converters) 12-Bit Precision DAC |
Data Sheet |
|
|
||||||||||||
|
MAX507BCWG+T |
Maxim Integrated Products |
DAC (D/A Converters) 12-Bit Precision DAC |
Data Sheet |
|
|
||||||||||||
 |
MAX507BCWG-T |
Maxim Integrated Products |
DAC (D/A Converters) |
Data Sheet |
Negotiable |
|
||||||||||||
