Product Summary

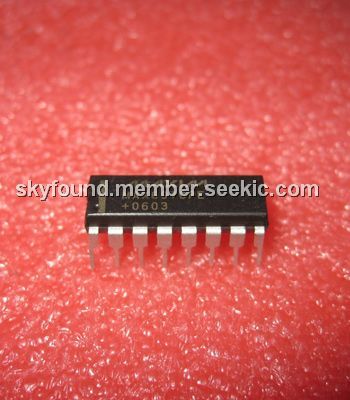

The MAX697CPE is a Microprocessor Supervisory Circuit. Supervisory circuit reduces the complexity and number of components required for power supply monitoring and battery control functions in microprocessor systems. These include μP reset and backup-battery switchover, watchdog timer, CMOS RAM write protection, and power-failure warning. The MAX697CPE significantly improves system reliability and accuracy compared to that obtained with separate ICs or discrete components. The applications of the MAX697CPE include Computers, Controllers, Intelligent Instruments, Automotive Systems, Critical μP Power Monitoring.
Parametrics
MAX697CPE absolute maximum ratings: (1)Terminal Voltage (with respect to GND), Vcc: -0.3V to 6.0V; Vbatt: -0.3V to 6.0V; All Other Inputs: -0.3V to (Vout +0.5V); (2)Input Current, Vcc: 200mA; Vbatt: 50mA; GND: 20mA; (3)Output Current, Vout: short circuit protected; All Other Outputs: 20mA; (4)Rate-of-Rise, Vbatt, Vcc: 100V//US; (5)Operating Temperature Range, C suffix: 0 to +70℃; E suffix: -40 to +85℃; M suffix: -55 to +125℃; (6)Storage Temperature Range: -65 to +160℃; (7)Lead Temperature (Soldering, 10 seconds): 300℃.
Features
MAX697CPE features: (1)Adjustable Low Line monitor and Power Down Reset; (2)Power OK/Reset Time Delay; (3)Watchdog Timer—100ms, 1.6 sec, or adjustable; (4)Minimum Component Count; (5)1//A Standby Current; (6)Battery Backup Power Switching; (7)Onboard Gating of Chip Enable Signals; (8)Separate Monitor for Power Fail or Low Battery Warning.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MAX697CPE |
Maxim Integrated Products |
Supervisory Circuits |
Data Sheet |
Negotiable |
|
|||||||||||||
MAX697CPE+ |
Maxim Integrated Products |
Supervisory Circuits MPU Supervisor |
Data Sheet |
|
|
