Product Summary

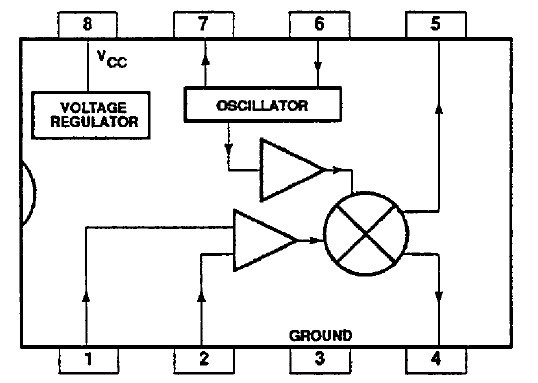

The NE602N is a low-power VHF monolithic double-balanced mixer with input amplifier, on-board oscillator, and voltage regulator. It is intended for high performance, low power communication systems. The guaranteed parameters of the NE602N make this device particularly well suited for cellular radio applications. The mixer is a "Gilbert cell" multiplier configuration which typically provides 18dB of gain at 45MHz. The applications of the NE602N include Cellular radio mixer/oscillator, Portable radio, VHF transceivers, RF data links, HF/VHF frequency conversion, Instrumentation frequency conversion, Broadband LANs.
Parametrics
NE602N absolute maximum ratings: (1)Maximum operating voitage, Vcc: 9V; (2)Storage temperature range, tstg: -65 to +150℃; (3)Operating ambient temperature range, Ta: 0 to +70℃; (4)Thermal impedance, D package, θja: 90℃/w; N package, θja: 75℃/W.
Features
NE602N features: (1)Low current consumption: 2.4mA typical; (2)Excellent noise figure: < 4.7dB typical at 45MHz; (3)High operating frequency; (4)Excellent gain, intercept and sensitivity; (5)Low external parts count; suitable for crystal/ceramic fitters; (6)SA602A meets cellular radio specifications.
