Product Summary

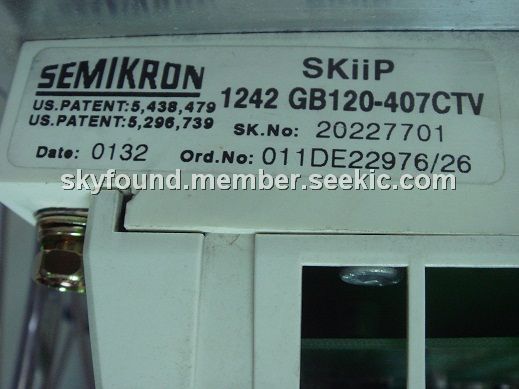

The SKIIP1242GB120-407CTV is a 2-pack-integrated intelligent power system.
Parametrics
SKIIP1242GB120-407CTV absolute maximum ratings: (1)VCES: 1200V; (2)VCC: 900V; (3)VGES: ±20V; (4)IC: 1200A when Ts=25℃; 900A when Ts=70℃; (5)IF=-IC: 1200A at Ts=25℃; 900A when Ts=70℃; (6)IFSM: 8640A; (7)I2t: 373kA2s.
Features
SKIIP1242GB120-407CTV features: (1)SKKiiP technology inside; (2)low loss IGBTs; (3)CAL diode technology; (4)integrated current sensor; (5)integrated temperature sensor; (6)integrated heat sink; (7)IEC 60721-3-3 class 2k3/IE32; (8)IEC68T.1 40/125/56.
Diagrams
 |
