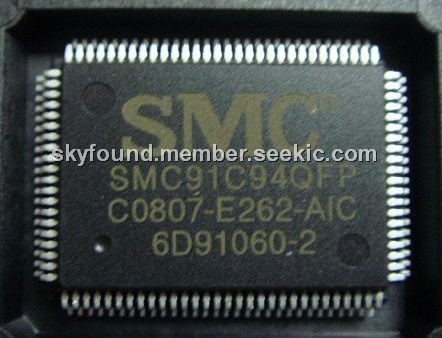

SMC91C94QFP

Product Summary

The SMC91C94QFP is a VLSI Ethernet Controller that combines ISA and PCMCIA interfaces, as well as an interface to a companion modem chip set, in one chip. The SMC91C94QFP integrates all the MAC and physical layer functions as well as the packet RAM needed to implement a high performance 10BASE-T (twisted pair) node. For 10BASE5 (thick coax), 10BASE2 (thin coax), and 10BASE-F (fiber) implementations, the SMC91C94QFP interfaces to external transceivers via its AUI port. Only one additional IC is required on most applications.

Parametrics

SMC91C94QFP absolute maximum ratings: (1)Operating Temperature Range: 0℃ to +70℃; (2)Storage Temperature Range: -55℃ to +150℃; (3)Lead Temperature Range (soldering, 10 seconds): +325℃; (4)Positive Voltage on any pin, with respect to Ground: Vcc + 0.3V; (5)Negative Voltage on any pin, with respect to Ground: -0.3V; (6)Maximum Vcc: +7V.

Features

SMC91C94QFP features: (1)SA/PCMCIASingle Chip Ethernet Controller With Modem Support; (2)6 Kbytes Built-In RAM; (3)Supports IEEE 802.3 (ANSI 8802-3) Ethernet Standards; (4)Full Duplex Support; (5)Hardware Memory Management Unit; (6)Built-In AUIand 10BASE-T Network Interfaces; (7)Simultasking - Early Transmit and Early Receive Functions; (8)Advanced Power Management Features/Including Magic Packet Frame Control; (9)Software Compatible with SMC91C92/SMC91C94 (in ISA Mode); (10)Configuration Registers Implement Cardbus Multi-Function Specification V3.0 with Backward Compatibility to V2.1; (11)Interfaces Directly to Lucent Technologies and Rockwell International Modem Chipsets; (12)On-Chip Attribute Memory (CIS) of up to 512 Bytes (On Even Addresses) For Card Configuration Information; Expandable Externally; (13)Option for Serial or Parallel EEPROM for CIS Optional External Flash Capability for XIP (Execute in Place); (14)Automatic Technology to Detect TX/RX 10BASE-T Tranceiver Pair Miswiring; (15)Low Power CMOS Design; (16)Supports Magic Packet Wakeup; (17)128 Pin VTQFP Package.

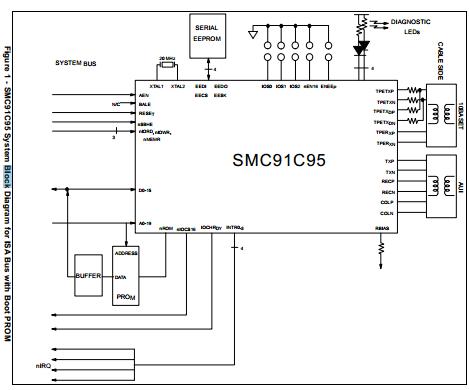

Diagrams
