Product Summary

The XC4044XLA-07BG432C is a high-performance, high-capacity Field Programmable Gate Array (FPGA). The XC4044XLA-07BG432C provides the benefits of custom CMOS VLSI, while avoiding the initial cost, long development cycle, and inherent risk of a conventional masked gate array. The result of fifteen years of the XC4044XLA-07BG432C design experience and feedback from thousands of customers, these FPGAs combine architectural versatility, increased speed, abundant routing resources, and new, sophisticated software to achieve fully automated implementation of complex, high-density, high-performance designs.

Parametrics

XC4044XLA-07BG432C absolute maximum ratings: (1)INIT (High) setup time, TIC: 5ns; (2)CCLK Frequency, FCC: 10 MHz; (3)Output Drive: 12/24 mA; (4)VIH_MAX: 5.5V.

Features

XC4044XLA-07BG432C features: (1)XLA Devices Require 3.0 - 3.6 V (VCC); (2)XV Devices Require 2.3- 2.7 V (VCCINT) and 3.0 - 3.6 V (VCCIO); (3)5.0 V TTL compatible I/O; (4)3.3 V LVTTL, LVCMOS compliant I/O; (5)5.0 V and 3.0 V PCI Compliant I/O; (6)12 mA or 24 mA Current Sink Capability; (7)Safe under All Power-up Sequences; (8)XLA Consumes 40% Less Power than XL; (9)XV Consumes 65% Less Power than XL; (10)Optional Input Clamping to VCC (XLA) or VCCIO (XV).

Diagrams

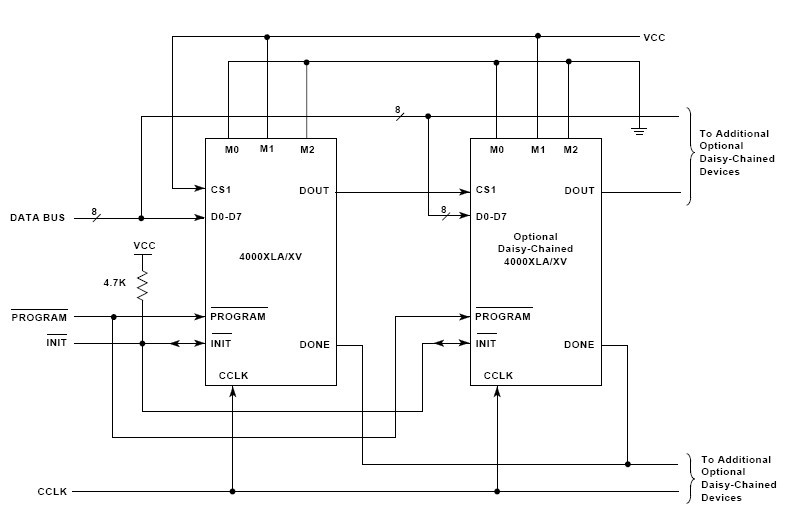

XC4044XLA-07BG432C block diagram
