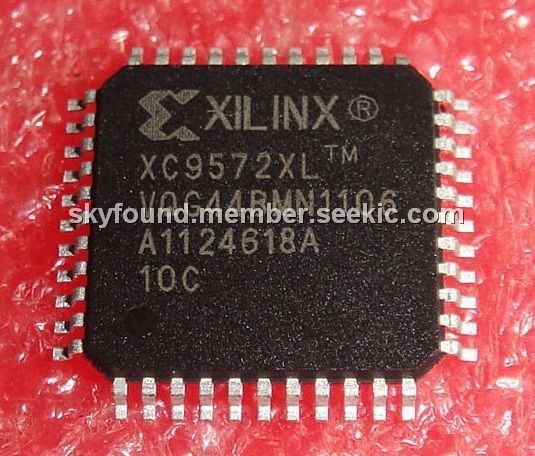

XC9572XL-10VQG44C

XC9572XL-10VQG44C, High-Performance CPLD, QFP, 5.5V, 20mA, Xilinx, Inc

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.00~2.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $1.00~2.00

PartNumber:: XC9572XL-10VQG44C

Brand:: Xilinx, Inc - Xilinx | Pack: QFP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Monica's store

(China (Mainland))

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-09-06

From Other Seller

Part Number:XC9572XL-10VQG44C
US $1.00 - 2.00
LM64P101

US $240.00 - 300.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

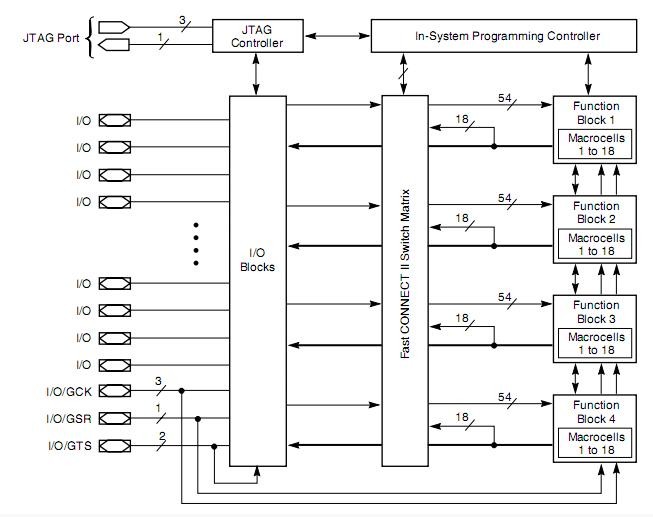

The XC9572XL-10VQG44C is a High-Performance CPLD targeted for high-performance, low-voltage applications in leading-edge communications and computing systems. It is comprised of four 54V18 Function Blocks, providing 1,600 usable gates with propagation delays of 5 ns.

Parametrics

XC9572XL-10VQG44C absolute maximum ratings: (1)Supply voltage relative to GND: -0.5V to 4.0V; (2)Input voltage relative to GND: -0.5V to 5.5V; (3)Voltage applied to 3-state output: -0.5V to 5.5V; (4)Storage temperature (ambient): -65℃ to +150℃; (5)Junction temperature: +150℃.

Features

XC9572XL-10VQG44C features: (1)5 ns pin-to-pin logic delays; (2)System frequency up to 178 MHz; (3)72 macrocells with 1,600 usable gates; (4)Available in small footprint packages: 44-pin PLCC (34 user I/O pins), 44-pin VQFP (34 user I/O pins), 48-pin CSP (38 user I/O pins), 64-pin VQFP (52 user I/O pins), 100-pin TQFP (72 user I/O pins), Pb-free available for all packages; (5)Optimized for high-performance 3.3V systems: Low power operation, 5V tolerant I/O pins accept 5V, 3.3V and 2.5V signals, 3.3V or 2.5V output capability, Advanced 0.35 micron feature size CMOS Fast FLASH technology; (6)In-system programmable; (7)Superior pin-locking and routability with Fast CONNECT II switch matrix; (8)Extra wide 54-input Function Blocks; (9)Up to 90 product-terms per macrocell with individual product-term allocation; (10)Local clock inversion with three global and one product-term clocks; (11)Individual output enable per output pin; (12)Input hysteresis on all user and boundary-scan pin inputs; (13)Bus-hold circuitry on all user pin inputs; (14)Full IEEE Standard 1149.1 boundary-scan (JTAG); (15)Fast concurrent programming; (16)Slew rate control on individual outputs; (17)Enhanced data security features; (18)Excellent quality and reliability.
