XCV50-4PQ240C

Product Summary

The XCV50-4PQ240C is a Field Programmable Gate Array. The XCV50-4PQ240C delivers high-performance, high-capacity programmable logic solutions. Dramatic increases in silicon efficiency result from optimizing the new architecture for place-and-route efficiency and exploiting an aggressive 5-layer-metal 0.22mm CMOS process. These advances make the XCV50-4PQ240C powerful and flexible alterna-tives to mask-programmed gate arrays. The device comprises the nine members. Building on experience gained from previous generations of FPGAs, the device represents a revolutionary step forward in programmable logic design.

Parametrics

XCV50-4PQ240C absolute maximum ratings: (1)Supply voltage relative to GND, VCCINT: -0.5 to 3.0 V; (2)Supply voltage relative to GND, VCCO: -0.5 to 4.0 V; (3)Input Reference Voltage, VREF: -0.5 to 3.6 V; (4)Input voltage relative to GND, Using VREF, VIN: -0.5 to 3.6 V; Internal threshold, VIN: -0.5 to 5.5 V; (5)Voltage applied to 3-state output, VTS: -0.5 to 5.5 V; (6)Longest Supply Voltage Rise Time from 1V-2.375V, VCC: 50 ms; (7)Storage temperature (ambient), TSTG: -65 to +150℃; (8)Junction temperature, Plastic Packages, TJ: +125℃.

Features

XCV50-4PQ240C features: (1)Fast, high-density Field-Programmable Gate Arrays, Densities from 50k to 1M system gates; System performance up to 200 MHz; 66-MHz PCI Compliant; Hot-swappable for Compact PCI; (2)Multi-standard SelectIO interfaces, 16 high-performance interface standards; Connects directly to ZBTRAM devices; (3)Built-in clock-management circuitry, Four dedicated delay-locked loops (DLLs) for advanced clock control; Four primary low-skew global clock distribution nets, plus 24 secondary local clock nets; (4)Hierarchical memory system, LUTs configurable as 16-bit RAM, 32-bit RAM, 16-bit dual-ported RAM, or 16-bit Shift Register; Configurable synchronous dual-ported 4k-bit RAMs; Fast interfaces to external high-performance RAMs; (5)Flexible architecture that balances speed and density, Dedicated carry logic for high-speed arithmetic; Dedicated multiplier support; Cascade chain for wide-input functions; Abundant registers/latches with clock enable, and dual synchronous/asynchronous set and reset; Internal 3-state bussing; IEEE 1149.1 boundary-scan logic; Die-temperature sensor diode; (6)Supported by FPGA Foundation and Alliance Development Systems, Complete support for Unified Libraries, Relationally; (7)Placed Macros, and Design Manager; Wide selection of PC and workstation platforms; (8)SRAM-based in-system configuration, Unlimited re-programmability; Four programming modes; (9)0.22mm 5-layer metal process; (10)100% factory tested.

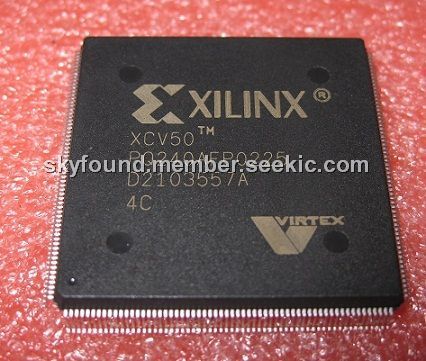

Diagrams
