Product Summary

The 3052V is a 3-Terminal, Low Dropout Voltage Dropper. The applications of the 3052V include For stabilization of the secondary stage of switching power supplies, Electronic equipment.

Parametrics

3052V absolute maximum ratings: (1)DC Input Voltage, VIN: 25V; (2)DC Output Current, IO: 2.0A; (3)Power Dissipation, PD: 50(TC =25℃)W; PD: 1.6(Without heatsink, stand-alone operation)W; (4)Junction Temperature, Tj: -30 to +125℃; (5)Ambient Operating Temperature, TOP: -20 to +100℃; (6)Storage Temperature, Tstg: -30 to +125℃; (7)Thermal Resistance (junction to case), Rth(j-c): 2.0℃/W.

Features

3052V features: (1)TO-3P package 3-terminal regulator; (2)Output current: 2.0A; (3)Low dropout voltage: VDIF≤1V (at IO=2.0A); (4)Built-in foldback overcurrent protection circuit.

Diagrams

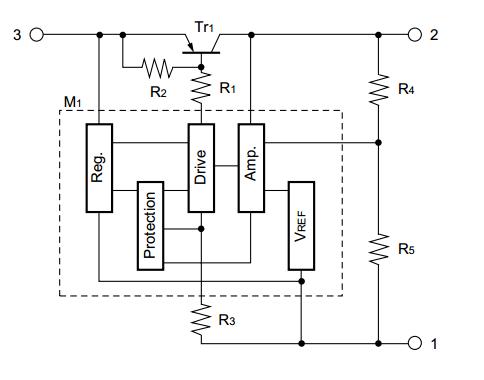

E28F400B5T80 block diagram

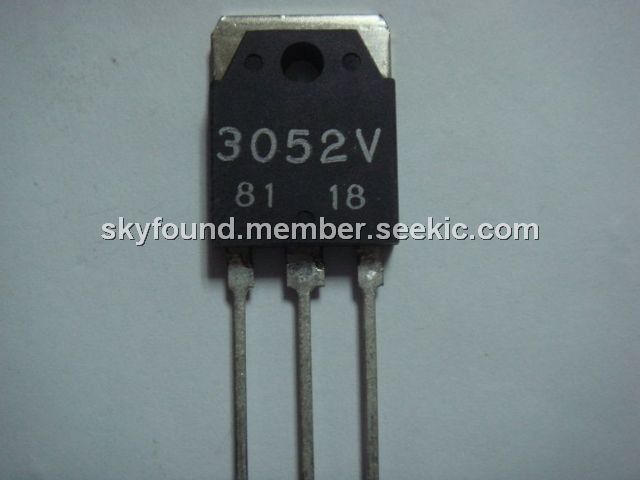

3052
3052
