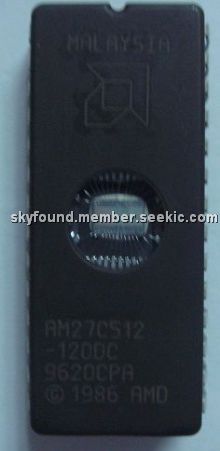

Product Summary

The AM27C512120DC is a 512-Kbit, ultraviolet erasable pro-grammable read-only memory. The AM27C512120DC is organized as 64K words by 8 bits per word, operates from a single +5 V supply, has a static standby mode, and features fast single address location programming. The AM27C512120DC is available in windowed ceramic DIP packages, as well as plastic one time programmable (OTP) PDIP and PLCC packages. Data can be typically accessed in less than 55 ns, al-lowing high-performance microprocessors to operate without any WAIT states. The device offers separate Output Enable (OE#) and Chip Enable (CE#) controls, thus eliminating bus contention in a multiple bus micro-processor system.

Parametrics

AM27C512120DC absolute maximum ratings: (1)Storage Temperature OTP Products: -65℃ to +125℃; (2)All Other Products: -65℃ to +150℃; (3)Ambient Temperature with Power Applied: -55℃ to +125℃; (4)Voltage with Respect to VSS, All pins except A9, VPP, VCC: -0.6 V to VCC +0.6 V; (5)A9 and VPP: -0.6 V to 13.5 V; (6)VCC: -0.6 V to 7.0 V.

Features

AM27C512120DC features: (1)Fast access time, Speed options as fast as 55 ns; (2)Low power consumption, 20 μA typical CMOS standby current; (3)JEDEC-approved pinout; (4)Single +5 V power supply; (5)±10% power supply tolerance standard; (6)100% Flashrite programming, Typical programming time of 8 seconds; (7)Latch-up protected to 100 mA from -1 V to VCC +1 V; (8)High noise immunity; (9)Versatile features for simple interfacing, Both CMOS and TTL input/output compatibility; Two line control functions; (10)Standard 28-pin DIP, PDIP, and 32-pin PLCC packages.

Diagrams

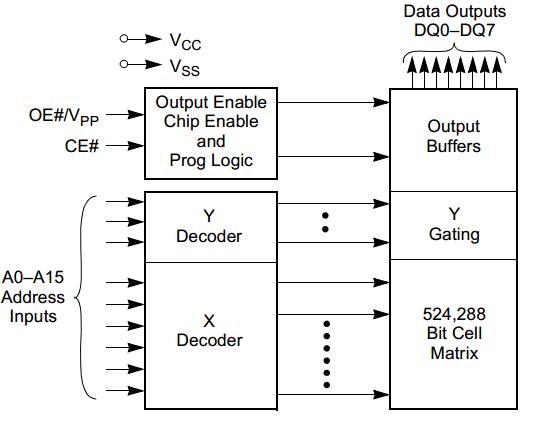

AM27C512120DC block diagram
