Product Summary

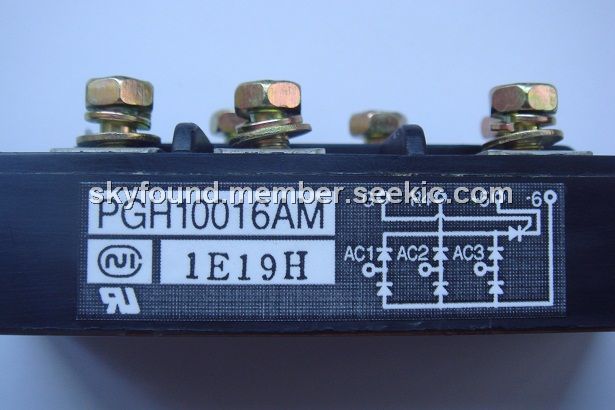

The PGH10016AM is a Thyristor Module. The applications of the PGH10016AM include Converter For UPS, VVVF and Servo Motor Drive Amplifier.
Parametrics
PGH10016AM absolute maximum ratings: (1)Average Rectified Output Current, IO(AV): 100 A; (2)Operating JunctionTemperature Range, Tjw: -40 to +150℃; (3)Storage Temperature Range, Tstg: -40 to +125℃; (4)Isoration Voltage, Viso: 2500 V; (5)Mounting torque CTearsme imnaolusn ting, Ftor: 2.4 to 2.8N·M.
Features
PGH10016AM features: (1)Isolated Base; (2)3 Phase Converter with Rush-Current Controllable Thyristor; (3)High Surge Capability; (4)UL Recognized, File No. E187184.
Diagrams
