Product Summary

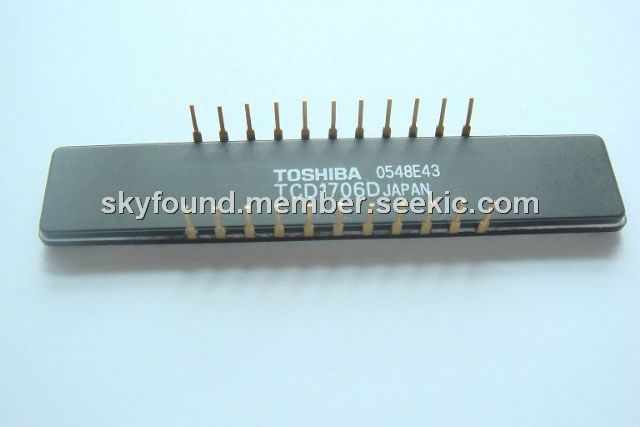

The TCD1706D is a high sensitive and low dark current 7400 elements CCD image sensor. The sensor is designed for facsimile, imagescanner and OCR. The device contains a row of 7400 elements photodiodes which provide a 24 lines/mm (600DPI) across a A3 size paper. The TCD1706D is operated by 5 V (pulse), and 12 V power supply.

Parametrics

TCD1706D absolute maximum ratings: (1)Clock pulse voltage, Vφ: -0.3 to 8.0V; (2)Shift pulse voltage, VSH: -0.3 to 8.0V; (3)Reset pulse voltage, VRS: -0.3 to 8.0V; (4)Clamp pulse voltage, VCP: -0.3 to 8.0V; (5)Power supply voltage, VOD -0.3 to 15V ; (6)Operating temperature, Topr: 0 to 60℃; (7)Storage temperature, Tstg: -25 to 85℃.

Features

TCD1706D features: (1)Number of image sensing elements: 7400 elements; (2)Image sensing element size: 4.7 μm by 4.7 μm on 4.7 μm centers; (3)Photo sensing region: High sensitive and low voltage dark signal pn photodiode; (4)Clock: 2 phase (5 V); (5)Package: 22 pin cerdip.

Diagrams

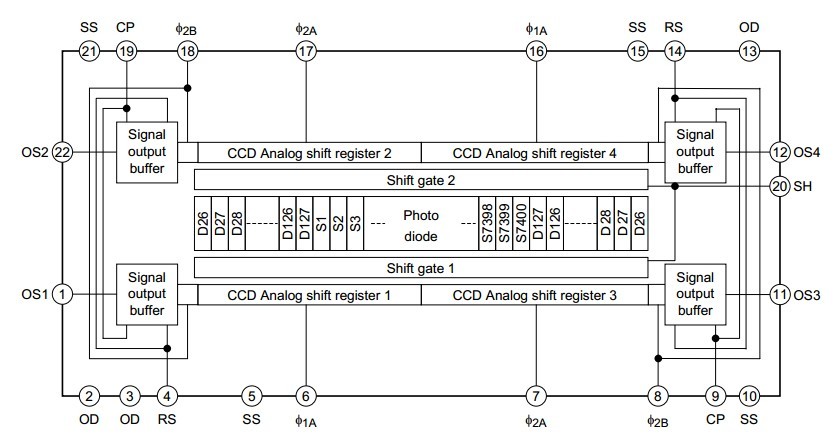

TCD1706D block diagram
