Product Summary

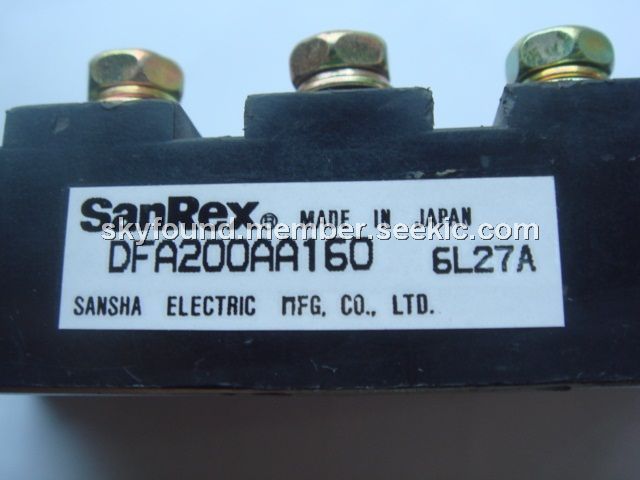

The DFA200AA160 is a three phase diode thyristor. The device is complex isolated module which is designed for rash current circuit. It contains six diodes connected in a three phase bridge configuration, and a thyristor connected to a direct current line. The applications of the DFA200AA160 include Inverter for AC or DC motor control, Current stabilized power supply, Switching power supply.

Parametrics

DFA200AA160 absolute maximum ratings: (1)Repetitive Peak Reverse Voltage, VRRM: 1600V; (2)Non-Repetitive Peak Reverse Voltage, VRSM: 1700V; (3)Output Current (D.C.), ID: 200A; (4)Surge forward current, IFSM: 1850/2000A; (5)Operating Junction Temperature, Tj: -30 to +150℃; (6)Storage Temperature, Tstg: -30 to +135℃; (7)Isolation Breakdown Voltage R.M.S., VISO: 2500V.

Features

DFA200AA160 features: (1)This Module is designed very compactly. Because diode module and thyristor put together; (2)This Module is also isolated type between electorode terminal and mounting base. So you can put this Module and other one together in a same fin.

Diagrams

DFA200AA160 circuit diagram
